MakerFocus PoE HAT(F) for Raspberry Pi 5, Power Over Ethernet Hats with Metal Heatsink and Active Cooling Fan, Supports IEEE 802.3af/at Network, 5V/12V Power Output and SMPS
4.7 (72 items)
Limited Time SaleUS$17.27 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217022160 | Release Date | 2026/04/19 | List Price | US$11.52 | Model Number | 217022160 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

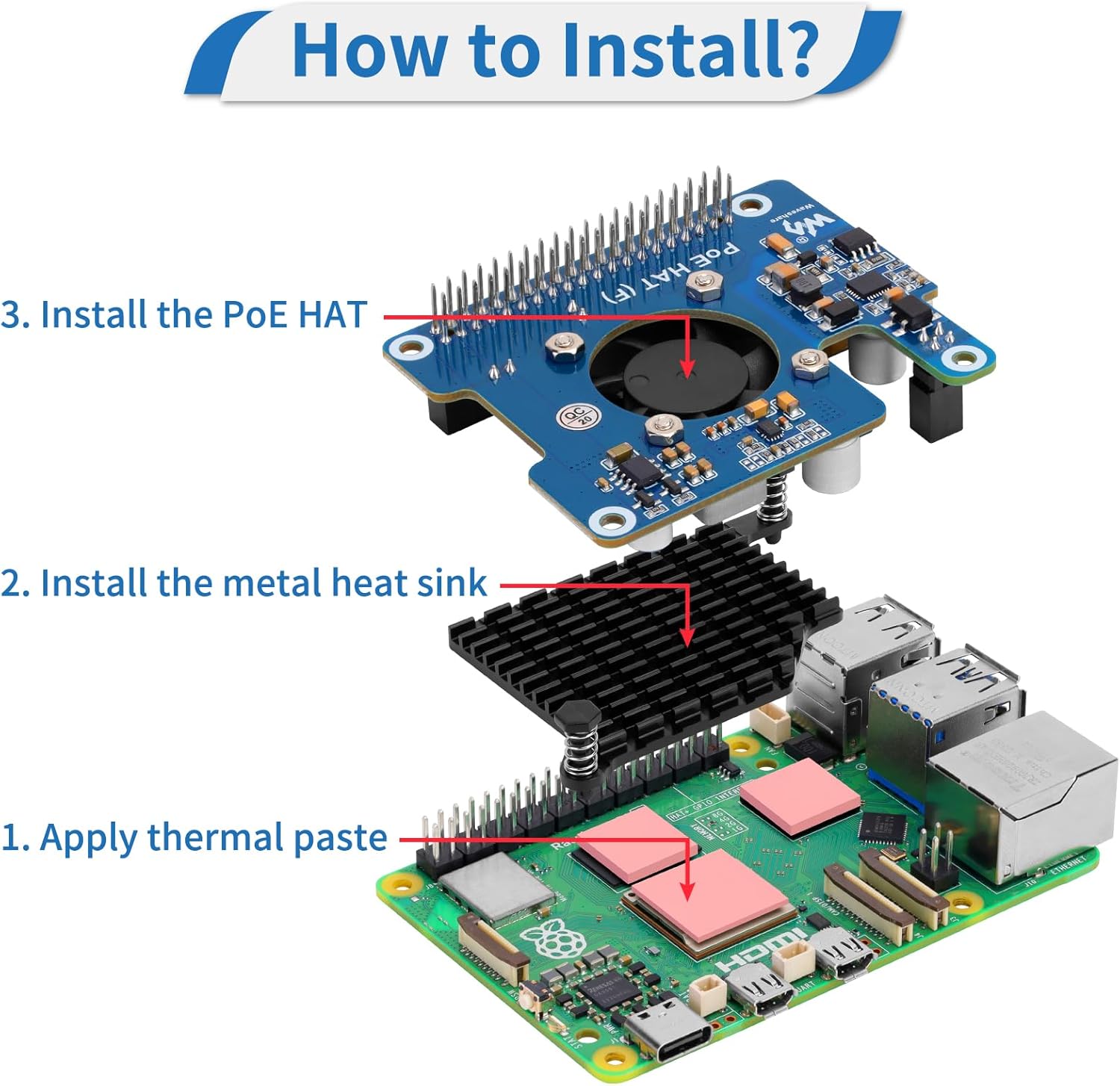

Description: Power over Ethernet (PoE) expansion board for the Raspberry Pi 5, supporting the IEEE 802.3af/at networking standard. It is suitable for use with PoE routers or switches that support the IEEE 802.3af/at networking standard, allowing the Raspberry Pi to be networked and powered over a single cable Highlights: 1. Based on the Raspberry Pi 40PIN GPIO interface for Raspberry Pi 5 2. Supports PoE Power over Ethernet, supports IEEE 802.3af/at PoE network standard 3. Fully isolated switched mode power supply (SMPS) 4. Onboard high speed active cooling fan and metal heat sink to accelerate heat dissipation How to Install? Put on the thermal tape first, then install the metal heat sink, and then install the PoE expansion board Parameters: PoE power input: 37V ~ 57V DC input Dimensions: 56.5 × 70.0 mm Power Output: GPIO pin: 5V 4.5A (max) 2P Pin: 12V 2A (Max) Note: The output power of a single port of a conventional switch is about 15W, if the output power is greater than 15W, you need to use a single port 30W output switch to provide sufficient power Package Content: 1 * Raspberry Pi 5 PoE HAT (F) 1 * Metal Heatsink 3 * Thermal Tape 5 * Studs 9 * Screws

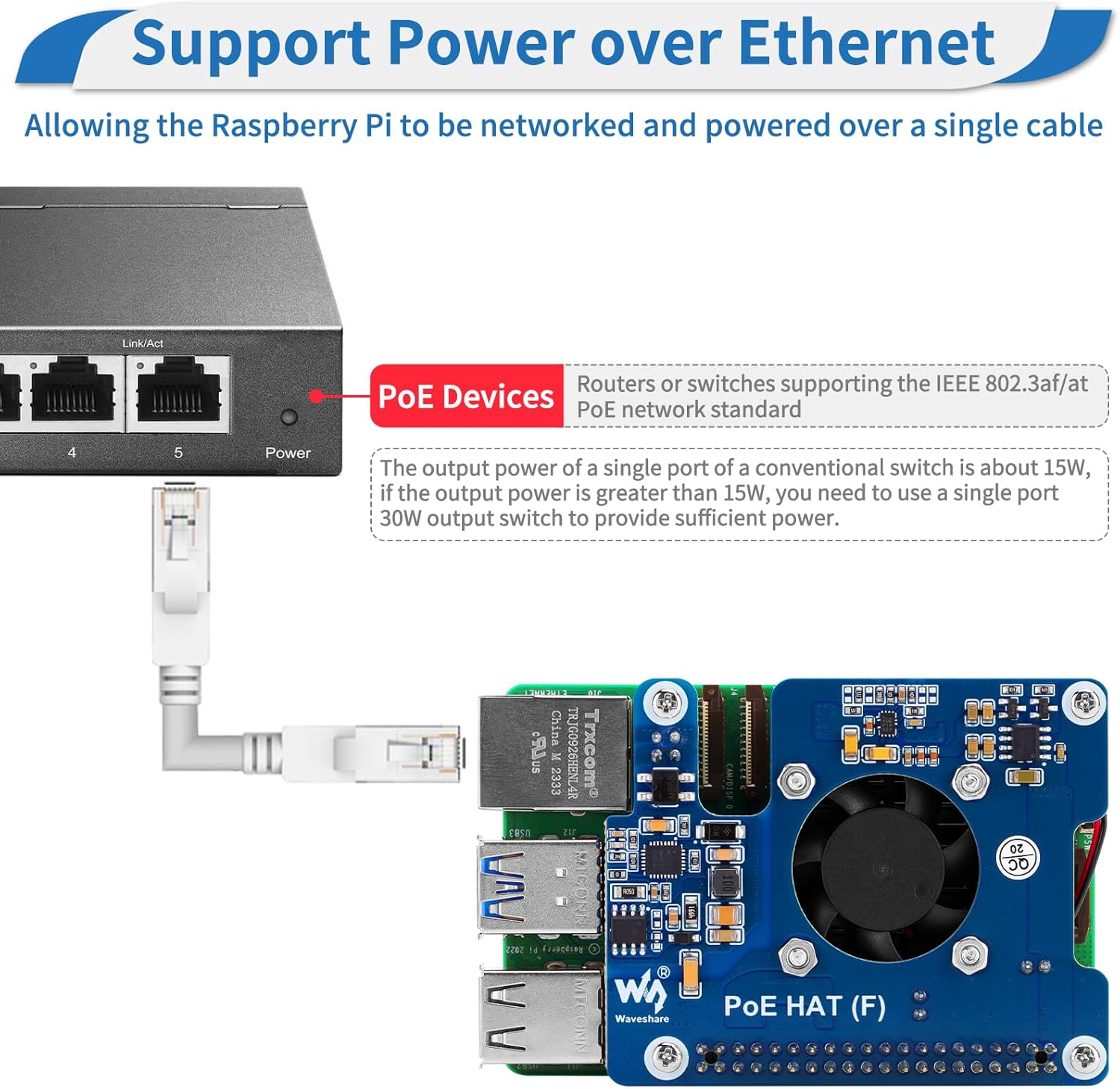

- Power Over Ethernet: Raspberry Pi 5 PoE HAT(F), supports IEEE 802.3af/at network standard. Ideal for use with PoE routers or switches that support the IEEE 802.3af/at network standard, allowing the Raspberry Pi to be networked and powered with a single cable
- On-board Power Output: On-board 5V and 12V pin header, the output power of the 5V interface can be up to 4.5A, the 12V interface can be up to 2A(the total power of the 12V and 5V output does not exceed 25W), meets the power supply of the Raspberry Pi can also supply power to other devices

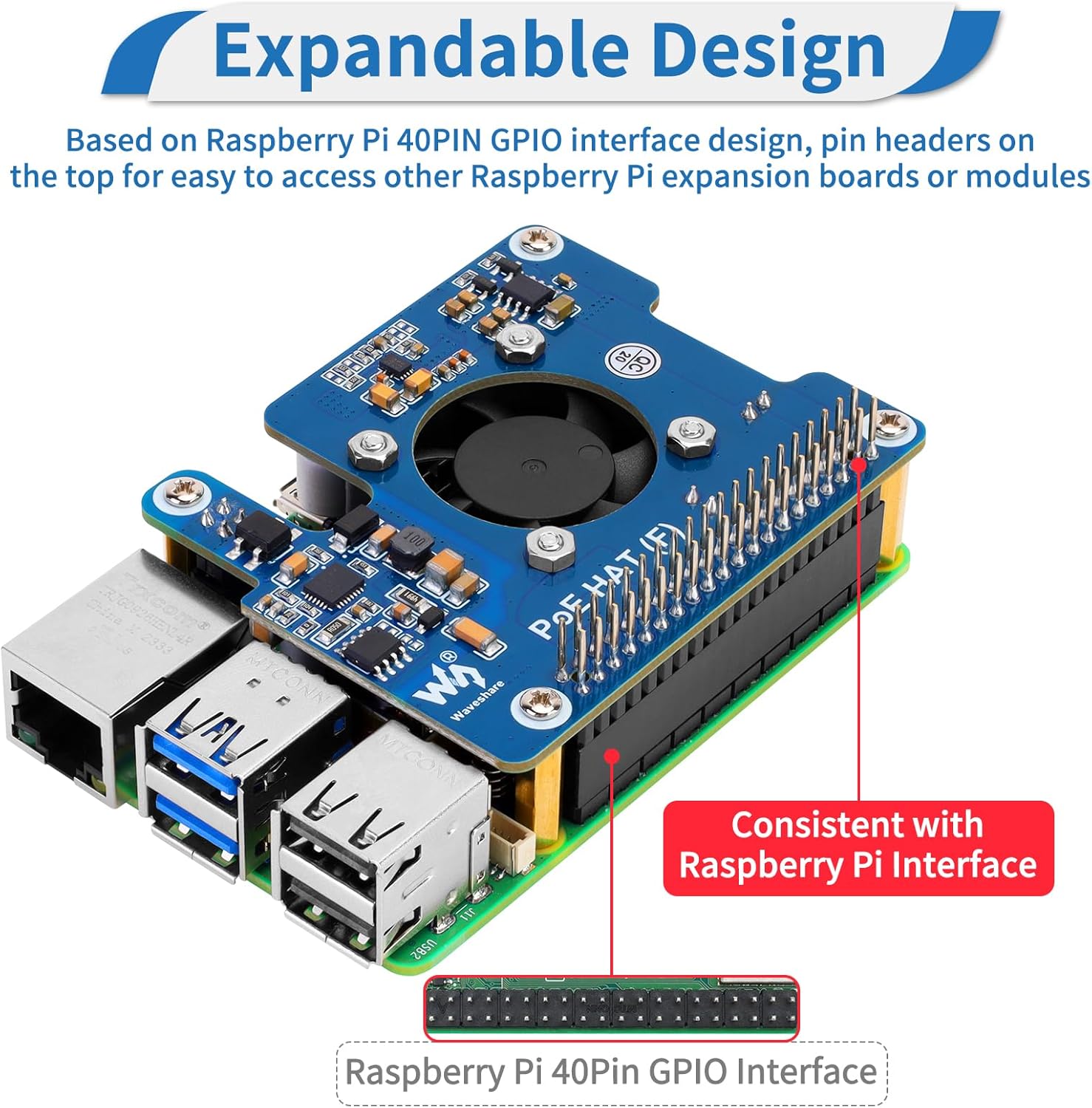

- Expandable Design: Based on Raspberry Pi 40PIN GPIO interface design, pin headers on the top for easy to access other Raspberry Pi expansion boards or modules
- Great Heat Dissipation Effect: Onboard high-speed active cooling fan, with thermal paste and metal heat sink accelerates heat dissipation for Raspberry Pi motherboard more stable operation
- More Highlights: Fully isolated switch mode power supply (SMPS); using MP8759GD buck chip, the output can be up to 5A under sufficient heat dissipation conditions
| Brand | MakerFocus |
|---|---|
| Model Name | Raspberry Pi 5 |
| Manufacturer | MakerFocus |
| BuiltIn Media | Raspberry Pi 5 PoE HAT(F) |
| Processor Brand | Broadcom |
| Processor Count | 1 |
| Operating System | Linux |
| Compatible Devices | Raspberry Pi 5 |
| Warranty Description | No Warranty |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | Ethernet, GPIO |
| Item Dimensions L x W x H | 2.22"L |
